High-field NMR System
Thông số cơ bản
| Tiêu chuẩn: | High-field NMR measurement and system integration |
| Ứng dụng: | NMR studies, high-field NMR applications, NMR system upgrade, automation and temperature control |
| Công nghệ phân tích: | Nuclear Magnetic Resonance, High-field NMR |
| Nhà cung cấp: | QUAD Systems AG |
| Model: | UAD High-field NMR System Components |
- High-field NMR System by QUAD Systems is a modular solution for advanced NMR studies.
- The system can be configured as a complete instrument or as selected upgrade modules.
- Main components include magnets, consoles, probes, sample changer, shim system and Peltier cooler.
Công Ty TNHH Beta Technology chịu trách nhiệm phân phối chính hãng, mọi thắc mắc xin liên hệ số điện thoại 0903.042.747 hoặc email sales@betatechco.com để được hỗ trợ!
High-field NMR System
High-field NMR System by QUAD Systems is designed for advanced nuclear magnetic resonance applications.
It can support routine NMR studies and specialized research workflows.
The system can be configured as a complete NMR instrument.
It can also be used to upgrade selected parts of an existing NMR platform.
A complete configuration can include magnets, consoles, probes, sample changer, shim system and Peltier cooler.
These components work together to deliver reliable NMR operation.
The system is suitable for laboratories that need high-performance NMR capability.
It is also suitable for users who need modular upgrades for existing NMR systems.
QUAD Systems offers complete systems and selected NMR components.
The company also provides consoles, probes, shim systems, automation and cooling units for existing magnets.
Complete High-field NMR Solution
A high-field NMR system is used to study molecular structure and material properties.
It measures nuclear magnetic resonance signals from samples placed in a strong magnetic field.
The system helps users perform NMR experiments with high sensitivity and stability.
It can support chemistry, life science, material science and analytical research.
The complete system combines hardware, electronics and software.
Each component has a specific function in the NMR workflow.
The magnet generates the magnetic field.
The probe interacts with the sample and detects the NMR signal.
The console controls RF generation, signal acquisition and experiment operation.
The shim system helps improve magnetic field homogeneity.
The sample changer supports automated sample handling.
The Peltier cooler provides temperature control for selected applications.
QUAD Systems positions its high-field NMR products as modular and application-driven.
The components can be tailored to customer requirements.
System Components

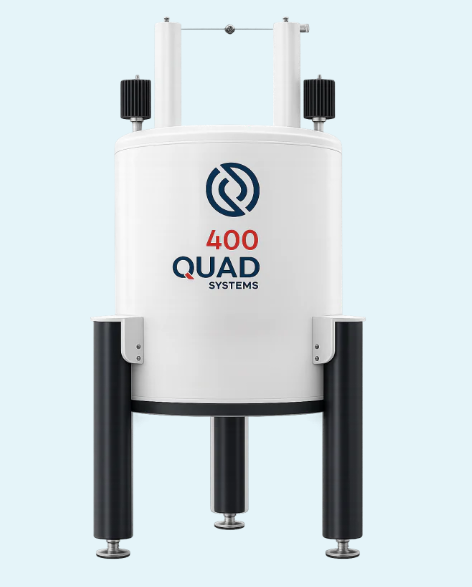

1. Magnets – High-field NMR System
QUAD magnets are designed for NMR applications.
They support performance and reliability in high-field NMR studies.
The magnet is one of the core components of the system.
It provides the stable magnetic field required for NMR measurement.
QUAD states that its magnets are designed in collaboration with a global network of specialist partners.
The aim is to deliver performance and reliability for NMR applications.
The magnet configuration can depend on the application.
It can also depend on the required field strength and laboratory setup.

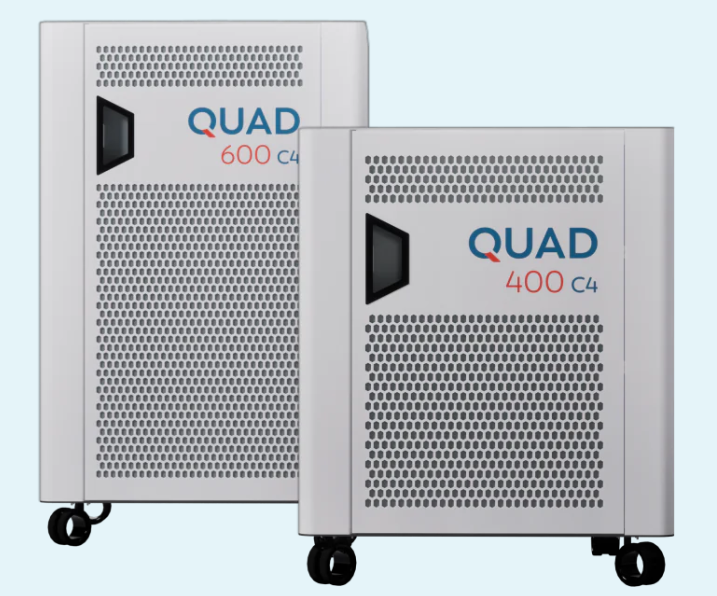

2. Consoles – High-field NMR System
The console is the control and acquisition unit of the NMR system.
It manages experiment control and signal acquisition.
QUAD consoles can be tailored to specific user needs.
They combine Cameleon4™ technology with Spinit software for reliable and intuitive operation.
The console can be part of a complete QUAD NMR system.
It can also be used as an upgrade for an existing NMR magnet.
This makes the console important for system modernization.
It can help extend the useful life of existing NMR infrastructure.
RS2D notes that QUAD solutions may include upgrades to existing system consoles, probes, shim systems, sample changers and automation.

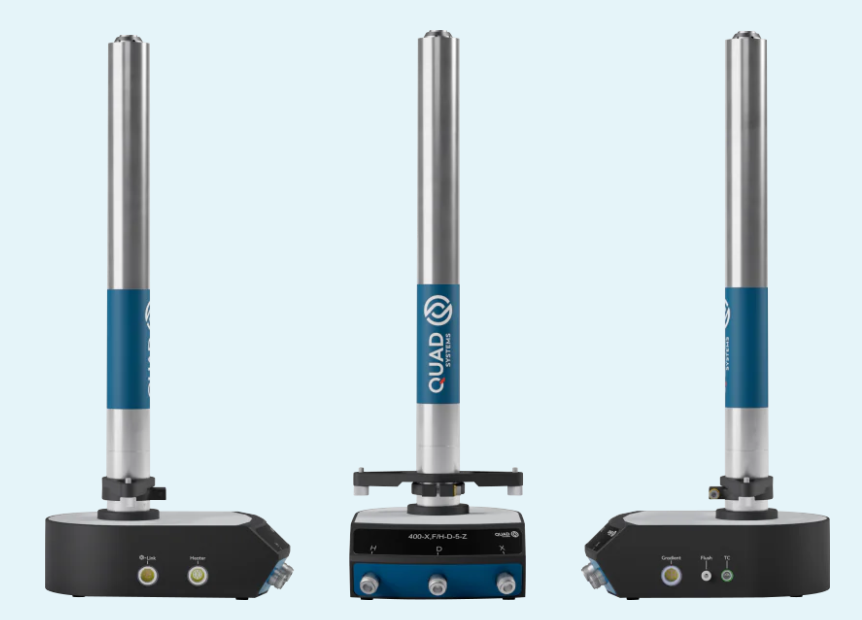

3. Probes – High-field NMR System
NMR probes are placed close to the sample.
They are used to transmit and receive RF signals during NMR experiments.
QUAD probes are designed for high-performance NMR operation.
They support high sample throughput, sensitivity and reduced maintenance.
The probe configuration depends on the application.
It also depends on nucleus, sample type and required experiment.
QUAD probes can be used with QUAD systems.
Some QUAD probe configurations are also promoted for compatibility with existing NMR platforms.
QUAD’s public company information mentions probes for 300 MHz to 950 MHz magnets.
It also describes compatibility with QUAD, Varian and Bruker spectrometers.

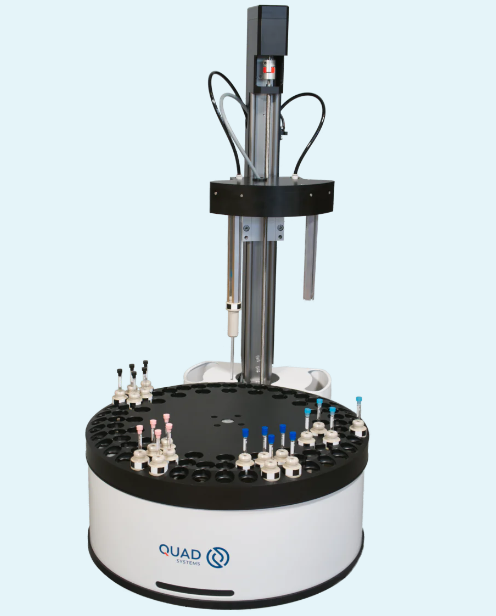

4. Sample Changer – High-field NMR System
The sample changer supports automation in NMR workflows.
It allows multiple samples to be handled with less manual intervention.
QUAD sample changer and automation systems can be configured to individual customer needs.
They can also be configured for different magnet types.
Automation is useful for routine analysis.
It is also useful for laboratories that need higher throughput.
The sample changer works together with the magnet, probe and console.
It helps improve workflow efficiency in NMR studies.
5. Shim System – High-field NMR System
The shim system is used to improve magnetic field homogeneity.
This is important for high-quality NMR spectra.
QUAD describes the shim system as a component designed to integrate with its latest magnet designs.
It can also be retrofitted to existing OEM magnet systems.
This makes it useful for system upgrade projects.
It can help users modernize existing NMR setups.
The shim system is an essential part of console upgrade packages.
It enables users with functional magnet systems to enhance and modernize their NMR systems.
6. Peltier Cooler – High-field NMR System
The Peltier cooler provides temperature control for NMR applications.
It supports stable sample conditions during selected experiments.
QUAD describes the cooling unit as an efficient temperature control system.
The standard range is from 5°C to 25°C.
Models for lower temperatures are available on request.
This makes the cooling option suitable for applications requiring controlled temperature conditions.
The Peltier cooler can support experiments where temperature stability is important.
It can also be part of a broader automation and system integration package.
High-field NMR System – Technical Specifications
Product type:
High-field NMR System
Modular NMR system components
NMR system upgrade solution
Technology:
Nuclear Magnetic Resonance
High-field NMR
RF signal generation and acquisition
Magnetic field shimming
Automated sample handling
Temperature-controlled NMR operation
System configuration:
Complete high-field NMR system
Standalone NMR components
Upgrade modules for existing NMR systems
Customized configuration according to user needs
Main components:
Magnets
Consoles
Probes
Sample changer
Shim system
Peltier cooler
Operating software:
Spinit software
Cameleon4™ technology for console operation
Automation:
Sample changer
Automation systems configurable to customer needs
Compatibility with different magnet types depending on configuration
Cooling range:
Peltier cooler from 5°C to 25°C
Lower-temperature models available on request
Compatibility:
Complete QUAD NMR systems
Existing NMR magnets depending on configuration
Retrofit to existing OEM magnet systems for selected components
Probe compatibility depends on system frequency and platform
